LSA281S10-B-UGFC-152

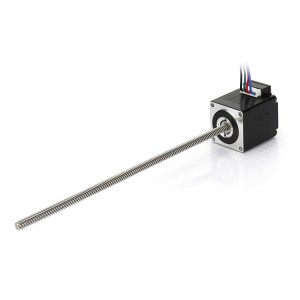

Compact external linear actuator in size NEMA 11 (28 mm). Ideal for the installation of compact linear axes, since it does not require a coupling, a bearing base or any installation effort. No linear guide necessary for small loads and low load ratings. Comes with trapezoidal or ACME thread. Available in several lengths and with different windings. The electrical connection is made using an integrated connector.
Please note:
- The force and output power ratings listed in the data sheets are based on a duty cycle of approx. 10% to 20% and must be reduced for higher values.
- Moving against fixed limit stops should be avoided.
規格參數
| 推力（N）: | 50 N |
| 速度（mm/s）: | 120 mm/s |
| 法蘭尺寸: | 28 mm |
| 機身長度: | 33 mm |
| 輸出類型: | 外部驅動式 |
| 內置編碼器: | 否 |
| 可選: | 編碼器 |
| 可選驅動器 / 控制器: |
CL3-E - Motor controller for CANopen, Modbus RTU or USB ? ? ? |
Technical Data? ?
Dimensions? ?
Torque? Curves
文檔下載
| 文件 | 類型 | 大小 | 最后更新 | 鏈接 |
|---|---|---|---|---|
| LSA28 Product_Overview | 400.979KB | 3月 / 17 / 2020 | Download | |
| LSA281S10-B-UGFC-152 3D Model | stp | 3.226MB | 3月 / 16 / 2020 | Download |
| LSA281S10-B-UGFC-152 Data Sheet | 110.308KB | 3月 / 16 / 2020 | Download | |
| Linear Motor Catalog | 117.093KB | 3月 / 16 / 2020 | Download |
