High Power Motor Controller-N5-2-3
The high-power controller is designed based on the EtherNet / IP protocol. Quick connection with PLC systems such as AB. It can also be controlled directly based on Ethernet. The rated output is 18A and the maximum output is 40A. Suitable for high power stepper motors and servo motors.
Features
- Ethernet / ip Motor Controller
- Stepper & EC?servo?Universal
- Rated current output 0-18A?
- peak current (0-40A)
- Easy to control via Ethernet / ip?or USB
- Compact
- Integrated input and output module
規格參數
| 額定電流（A）: | 18 A |
| 供電電壓 V DC: | 12-58 V DC |
| 控制接口: | EtherNet/IP |
| 輸入 & 輸出: | 6?Digital inputs (5V-24V ) 2? Analog input 0-10 V, 0-20 mA/0-10 V switchable? 2?Digital outputs |
| OEM可編程: | Yes |
| 定制化: | Firmware |
| 適用電機: | stepper and DC servo motor |

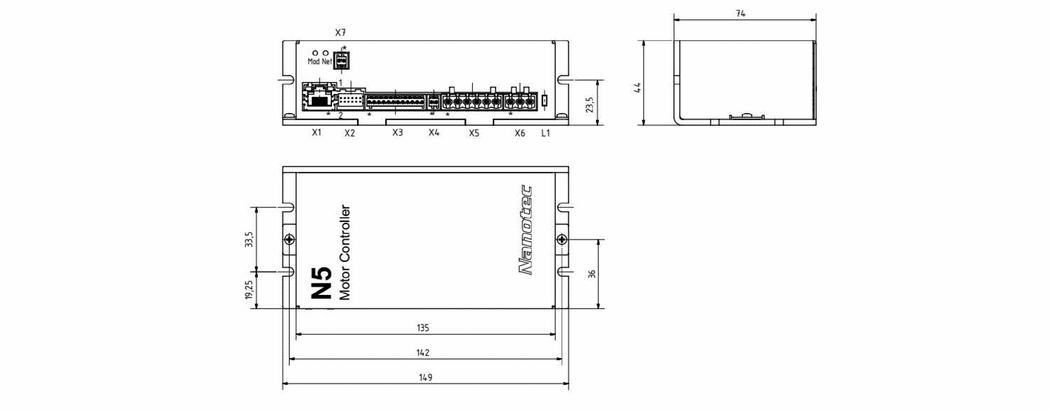

Dimension
?
文檔下載
| 文件 | 類型 | 大小 | 最后更新 | 鏈接 |
|---|---|---|---|---|
| N5-x-3_EtherNetIP_Technical-Manual_V2.0.1 | 5.168MB | 1月 / 10 / 2020 | Download | |
| PNDS-2.0.5-release-package | zip | 323.863MB | 12月 / 19 / 2019 | Download |
